- Applicable object:
- Water
- Use:
- Water filtration
- Specifications:
- 8 inches
- Thickness:
- 3.0 mm
- Applicable scope:
- Medical use
- Filtration mode:
- Internal pressure type
- Operating pressure:
- 2.7 Mpa
- Operating temperature:
- 100 ℃
- Model:
- BN3-8040

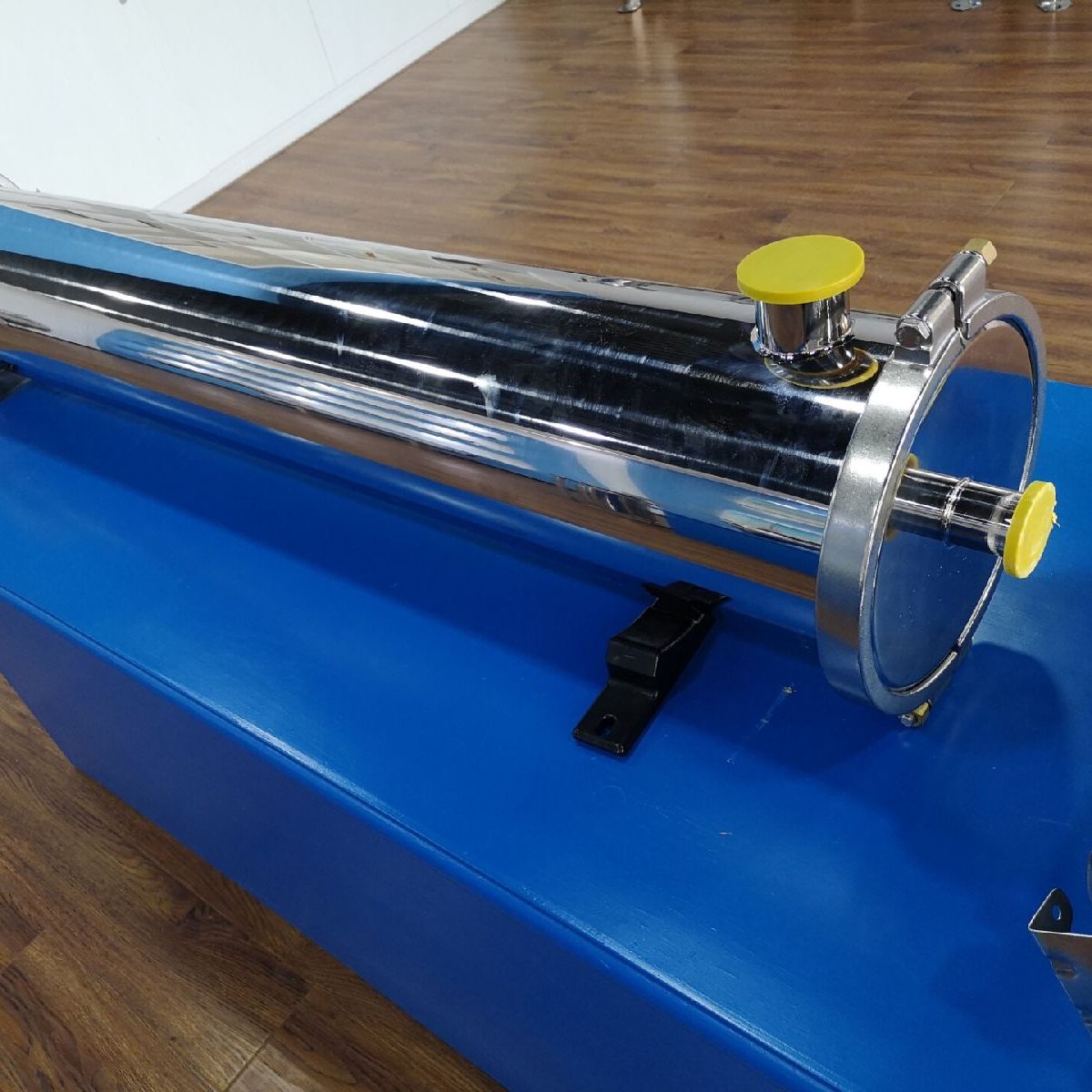

Stainless steel membrane shell
Category:
companyStainless steel membrane shell is the basic component of reverse osmosis equipment, and the material is304 stainless steel seamless tube.
catalogue 1Product introduction 2Technical characteristics 3Performance characteristics product presentation
Stainless steel membrane shell is the basic component of reverse osmosis equipment, the material is304 stainless steel seamless pipe, according to the end cover sealing form is divided into: clamp type, flange type, built-in type; according to the water inlet mode is divided into: end into, side into. The length matches the number ofreverse osmosis membranemodules; the product is polished inside and outside, beautiful and practical, and the use pressure meets the normal operation pressure requirements of reverse osmosis system.
technical characteristic
Pressure:2.0~2.5MPa
Water inlet mode: water inlet at both ends, water inlet at both sides
Structure: Standard spare parts, easy to disassemble
Hermeticity: pressure tested
Organization structure at both ends: clamp type, card type, inner spring type.
performance characteristics
The 4040 membrane shell is divided into two types: seam and seamless, and is made of SUS304 stainless steel. Both ends are sealed with ABS head andsilicone O-ring, which has high sealing performance and long service life.
8040 membrane housing: There are two types of ferrule and end cover. It is made of SUS304 seamless stainless steel tube. It has good sealing performance, high pressure resistance, no aging, convenient installation and cleaning of the membrane. Working pressure (Mpa):4.0. The inlet and outlet of membrane shell can be end-in (outlet) or side-in (outlet) according to customer requirements. Stainless steel membrane shell has 2.5 inches, 4 inches, 8 inches, etc.
The 1.4-inch RO membrane shell is available in 1-core, 2-core, 3-core, 4-core and other series.
2. Membrane shell tube is divided into two kinds: slit tube and seamless tube.
3. Inlet and outlet connection mode has side inlet and outlet, end inlet and outlet; specifications have 6 minutes x4 minutes and 4 minutes x4 minutes.
4. End materials are ABS, stainless steel.
